1. ALC panel without reinforcing steelUltra-lightweight:
Size: 1200mm x 600 x Thick (Customized)

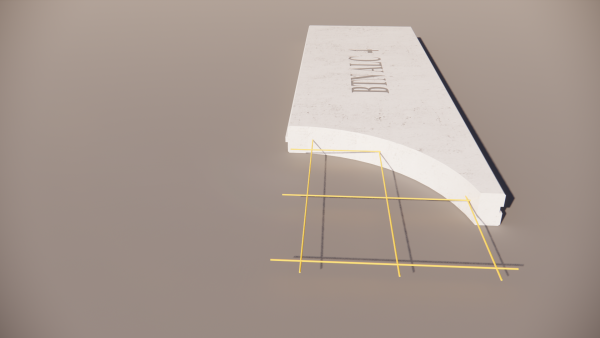

2. ALC AUTOCLAVED AERATED LIGHTWEIGHT CONCRETE SLABS WITH 1 LAYER OF STEEL (~ 3.5MPA)
Description:
It is a steel mesh reinforced T-joint panel, is manufactured from autoclaved aerated concrete (AAC) non-fired material, thus possessing all the superior technical properties of AAC blocks. Its structure consists of a single layer of high-grade anti-corrosion steel reinforcement inside, combined with a T-joint connection system, which helps to:
- Increase load-bearing capacity
- Lightweight, saving on material, labor, and transportation costs.
- Quick and simple construction
- Fire-resistant, withstands fire for up to 4 hours.
- Thermal insulation, air conditioning
- Superior sound insulation and noise reduction.
Specifications:
- Size: 4000(L) x 600(W) x thick ( Customized)
- Compressive strength: ∼ 3.5 MPA
- Mounting bracket: Flat (no bracket)
- Number of wire mesh layers: 1 layer
- Sound insulation coefficient: ~ 36 Decibels
- TCVN 7959:2011
3. ALC AUTOCLAVED AERIAL CONCRETE SLABS WITH DOUBLE-LAYER STEEL JOINTS (~ 7.5MPA)
It is a steel mesh reinforced panel with T-joint connections, is manufactured from autoclaved aerated concrete (AAC) non-fired material, thus possessing all the superior technical properties of AAC blocks. Its structure consists of two layers of high-grade anti-corrosion steel reinforcement inside, combined with T-joint connections, which helps to:
- Increase load-bearing capacity
- Lightweight, saving on material, labor, and transportation costs.
- Quick and simple construction
- Fire-resistant, withstands fire for up to 4 hours.
- Thermal insulation, air conditioning
- Superior sound insulation and noise reduction.
Specifications:
- Size: 4000(L) x 600(W) x thick ( Customized)
- Compressive strength: ∼ 7.5 MPa
- Mounting bracket: Flat (no bracket)
- Number of wire mesh layers: 2
- Sound insulation coefficient: ~ 48 Decibels
- TCVN 7959:2011
